BFLY
// SYSTEM_PROFILE
Reconnaissance Drone — Compact Tactical ISR.
CALLSIGN = BFLY
CLASS = COMPACT_TACTICAL_ISR
ENDURANCE = 3_HOURS
RANGE = 950_KM
STATUS = DEPLOYABLE
// LIVE_FEED = ACTIVE
Interactive Model
// VIEWER = OPERATIONALROTATE · ZOOM · INSPECT
Drag to rotate | Scroll to zoom
// MODEL_ID = BFLY
// OVERVIEWDOSSIER

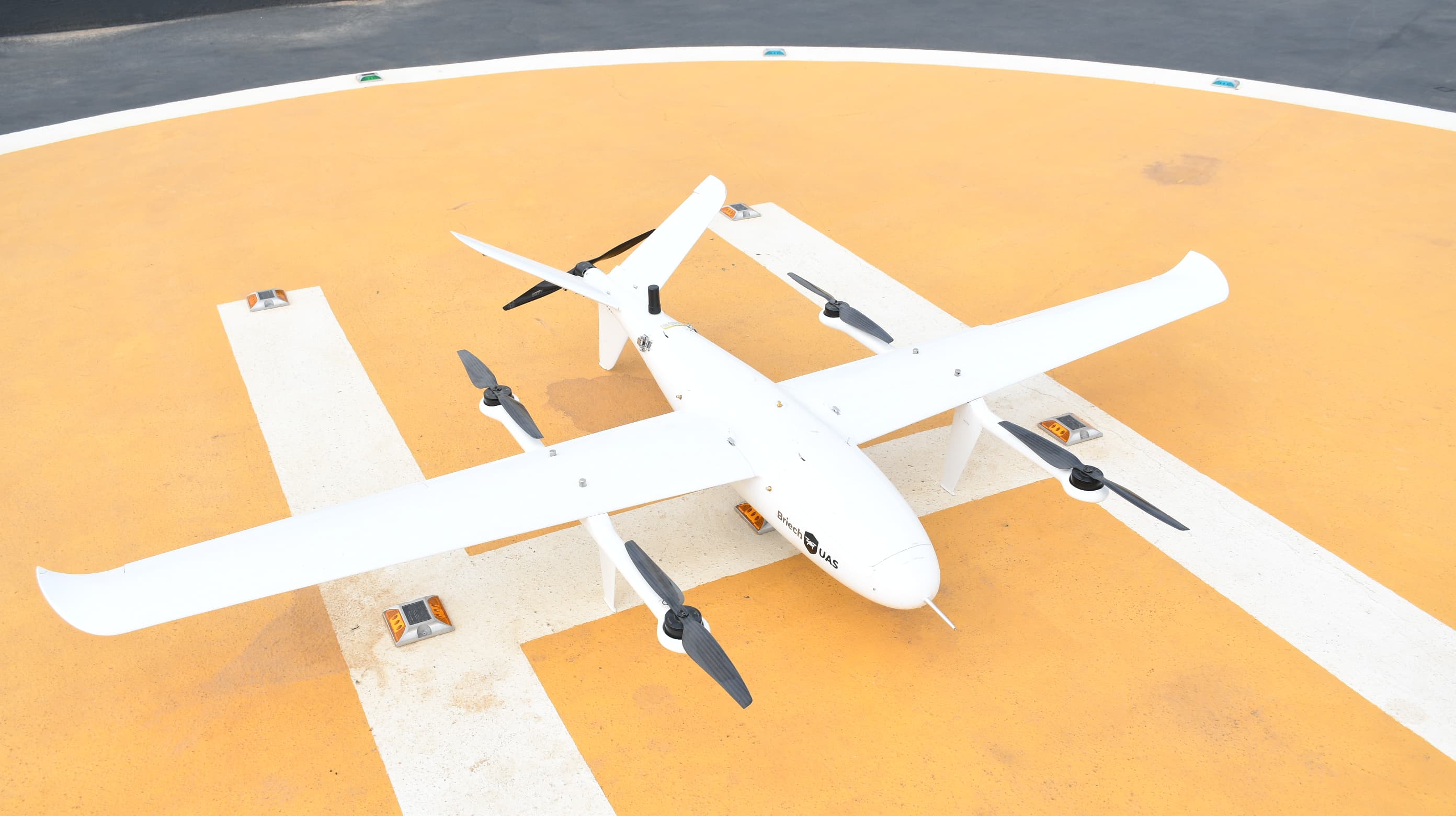

The Bfly Reconnaissance Drone is a compact hybrid VTOL UAV designed for rapid ISR missions with a 3-hour flight endurance. Inspired by nature's most agile creatures, the Bfly moves unseen, weaving through complex environments with unmatched agility. Its compact size allows it to operate where larger drones cannot, slipping past defenses, navigating tight spaces, and delivering real-time intelligence with surgical precision.
// KEY_FEATURES
- 01Rapid Deployment & Mobility: Lightweight and portable for quick launch
- 02High-Resolution ISR Capabilities: Equipped with EO/IR cameras for real-time intelligence
- 03Stealth & Low Detectability: Low thermal signature for undetected operations
- 04Autonomous Operations: Object recognition and tracking for enhanced situational awareness
- 05Secure Communications: Encrypted data transmission to prevent signal interception
- 06Multi-Terrain Versatility: Operates effectively in urban and rural environments
// TECHNICAL_SPECIFICATIONS
Specifications
Performance envelope and operational parameters for the Bfly.
001
DIMENSIONS
1.8m × 1.5m × 0.5m
002
WEIGHT
120kg (fully loaded)
003
MAX SPEED
220 km/h
004
CRUISE SPEED
150 km/h
005
RANGE
950 km
006
CEILING
5,000m
007
ENDURANCE
3 hours
008
POWERPLANT
Advanced Electric Motor
009
PAYLOAD
Up to 40kg (compact sensor array)
010
COMMUNICATIONS
Encrypted short/medium range
011
NAVIGATION
Compact GPS/INS with urban navigation capability
012
LAUNCH METHOD
Hand launch or catapult
013
RECOVERY METHOD
Skid landing or catch net
